Product & Equipment Catalog
Gas Analysis & Monitoring Systems Hanwei Electronics

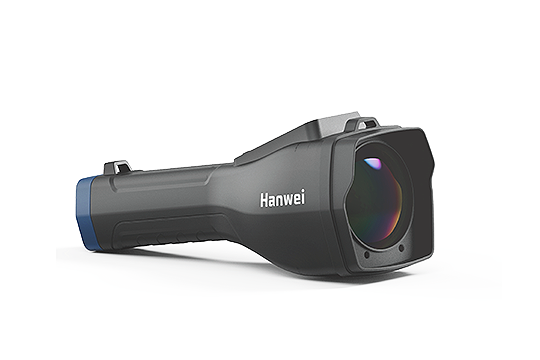

HRLD600 Portable Laser Methane Telemetric Detector
Hanwei ElectronicsHRLD600 is a handheld telemetric laser methane detector utilizing Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology. The instrument allows for non-contact, rapid detection of natural gas leaks at distances up to 150 meters. It is ideal for inspecting hard-to-reach places, elevated pipelines, and closed industrial structures.
| Measurement Principle | TDLAS (Tunable Diode Laser Absorption Spectroscopy) |
|---|---|
| Detection Distance | 0.5 to 150 meters |
| Measurement Range | 0 – 100,000 ppm·m |
| Sensitivity / Response Time | 5 ppm·m / T90 < 0.05 seconds (instantaneous response) |
| Protection & Power | IP66 / Rechargeable Li-ion battery (up to 10 hours continuous operation) |

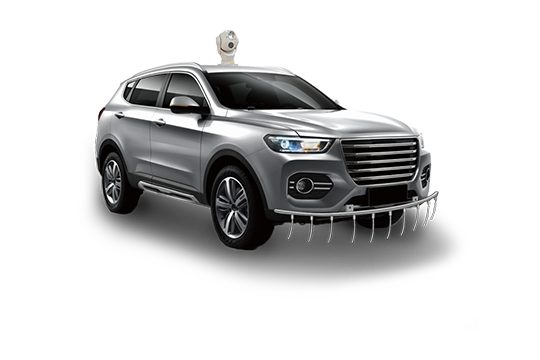

VMLD700II + VRLD200 Vehicle-Mounted Laser Methane Detection System
Hanwei ElectronicsVMLD700II+VRLD200 is a professional vehicle-mounted laser methane detection system designed for high-speed automated monitoring of urban gas distribution networks. The system scans underground and above-ground pipelines at speeds up to 50 km/h, preventing false alarms from vehicle exhaust or other non-methane hydrocarbons.
| System Sensitivity | 1 ppm (high sensitivity detection) |
|---|---|
| Inspection Speed | Up to 50 km/h with continuous pump sampling |
| Integration & Mapping | GPS/GIS mapping of leak locations, on-board PC dashboard |
| System Components | VMLD700II (base sampling unit) and VRLD200 (roof laser scanner) |
Professional Breath Alcohol Testers Justec / AlcoFind

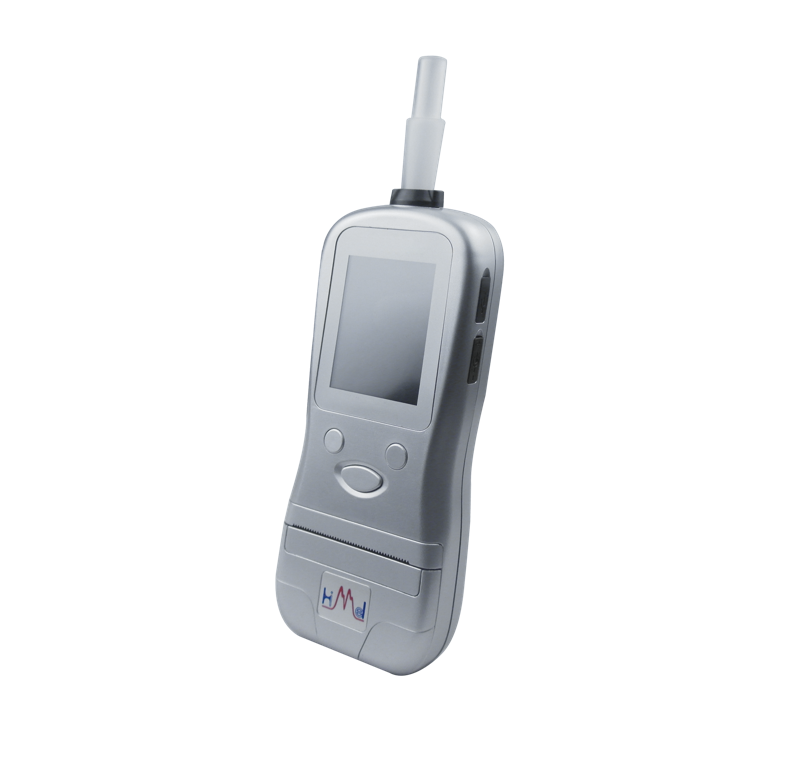

AlcoEasy A30 Breath Alcohol Analyzer
JustecAlcoEasy A30 is a professional breath alcohol analyzer equipped with a high-precision fuel cell sensor and a built-in thermal printer. Featuring a color touchscreen, it allows operators to input subject and inspector data directly on site, enabling immediate printing of measurement reports complete with audit trails.
| Sensor Technology | High-precision electrochemical fuel cell sensor |
|---|---|
| Measurement Range / Accuracy | 0 – 550 mg/100 mL / ±5% (within 88–220 mg/100 mL range) |
| Display & Interface | 2.4" TFT color touchscreen display |
| Memory & Printing | Up to 20,000 records in history archive / Integrated thermal printer |
| Power Supply | Rechargeable battery 3.7 V / 2200 mAh |

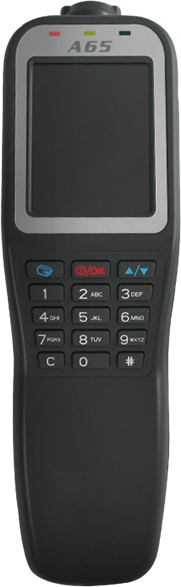

AlcoEasy A65 Breath Alcohol Analyzer
JustecAlcoEasy A65 is a compact version of the professional breathalyzer without an integrated printer. It offers the same high-precision fuel cell sensor and touchscreen. The device is designed for mobile pre-shift and post-incident screening of drivers and industrial staff, storing the full test history in its internal memory.
| Sensor Technology | High selectivity electrochemical fuel cell sensor |
|---|---|
| Measurement Range / Accuracy | 0 – 550 mg/100 mL / ±5% |
| Display Type | 2.4" TFT color touchscreen |
| Test Memory | Up to 20,000 measurements with time and date stamps |
| Power Supply | Rechargeable Li-ion battery 3.7 V / 2200 mAh |

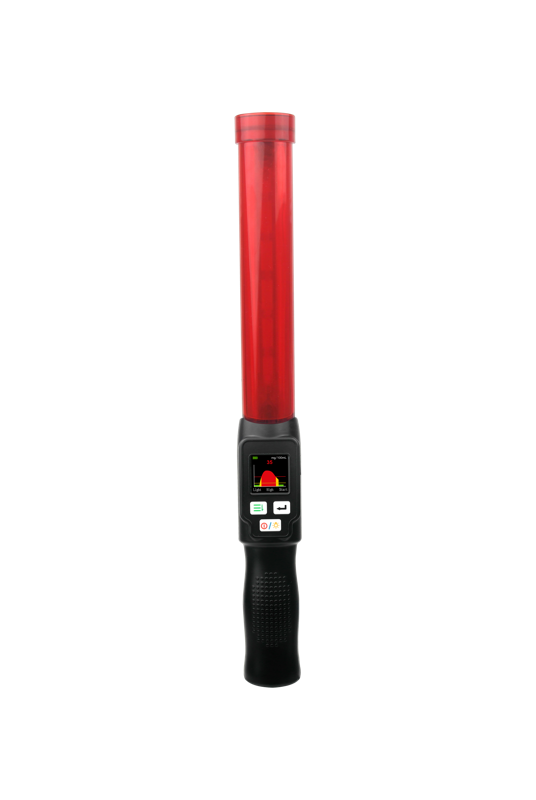

AlcoStop 1800 Breath Alcohol Indicator
JustecAlcoStop 1800 is a specialized non-contact alcohol indicator designed as a police-style traffic baton with LED illumination and a built-in flashlight. It enables rapid screening without disposable mouthpieces. An internal compressor automatically pulls in air samples as the subject breathes near the device, providing instant results.
| Sampling Method | Non-contact passive exhalation (built-in air pump) |
|---|---|
| Sensor Technology | Electrochemical fuel cell sensor |
| Design Features | Baton-like body with traffic control LEDs, flashlight in the handle |
| Result Display | Color screen showing concentration threshold indicator |
| Power Supply | Rechargeable battery 3.7 V / 2200 mAh |

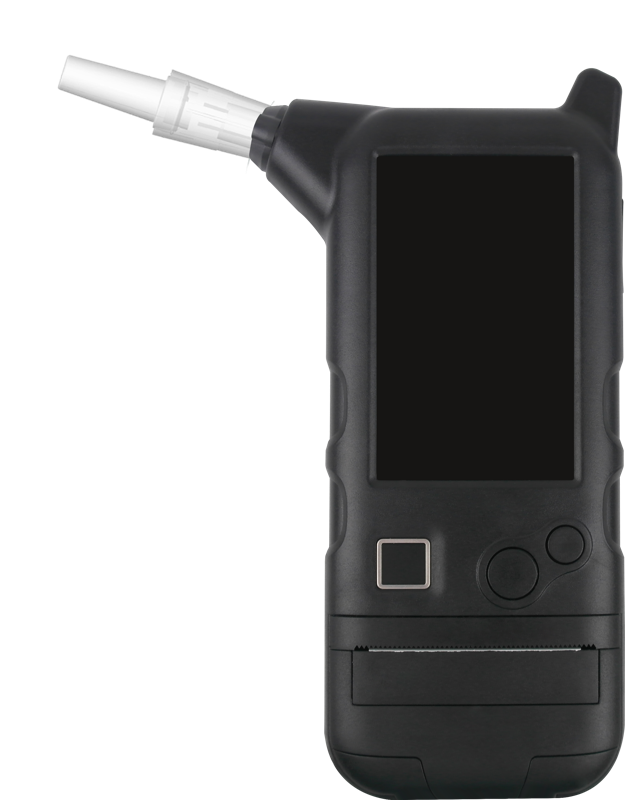

AlcoStop 8000S Breath Alcohol Analyzer
JustecAlcoStop 8000S is a state-of-the-art screening solution featuring an electrochemical sensor, built-in camera for facial verification (Face ID), and Wi-Fi/4G connectivity. The device securely uploads test results and GPS coordinates to the company's server in real time while printing hard copies via the built-in printer.
| Camera & Telemetry | 5 MP autofocus camera / Built-in Wi-Fi and 4G LTE modules |
|---|---|
| Data Verification | Subject photo capture, GPS coordinates of the test location |
| Display & Memory | 4.0" TFT color touchscreen / Up to 30,000 records in archive |
| System Integration | API support for access control (ACS), CRM, and enterprise databases |
| Printer & Power | Integrated thermal printer / High-capacity battery 7.4 V / 2000 mAh |

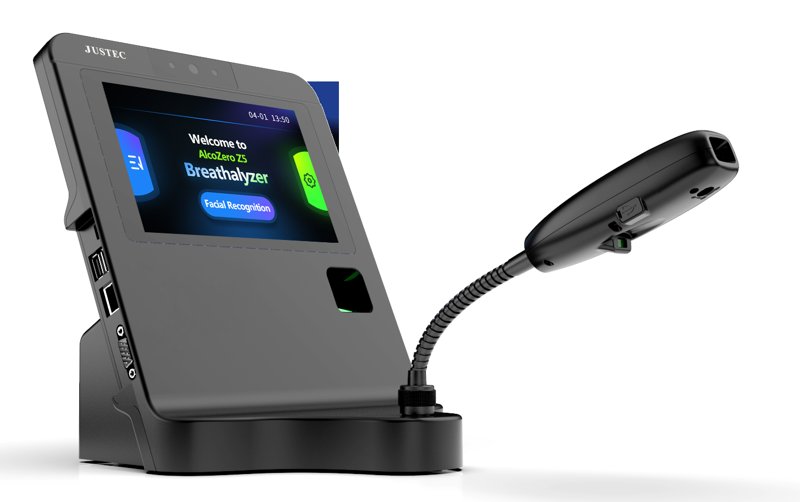

AlcoZero Z5 Breath Alcohol Indicator
JustecAlcoZero Z5 is a stationary, non-contact alcohol indicator designed to integrate into turnstiles and gates at industrial access control points (ACS). It automates employee verification via Face ID, RFID cards, or fingerprint scanners, conducts built-in UV disinfection of the exhalation zone, and uploads results to the server.
| Verification Methods | 5 MP Face ID camera, RFID card reader, biometric fingerprint scanner |
|---|---|
| Sampling & Safety | Passive non-contact exhalation / Integrated ultraviolet disinfection |
| Communication Ports | Wi-Fi, LAN, USB, serial port RS-232 |
| Display & Capacity | Large 7.0" color touchscreen / Database storing up to 100,000 tests |
| Power Input | Stationary power connection from 220V grid |
Road Safety & Radar Control DK SpeedControl
MultiRadar CD Speed Violation Recorder
DK PartnerThe MultiRadar CD system utilizes 3D Doppler tracking radar technology to monitor up to 6 traffic lanes simultaneously, identifying speed violations, red-light runs, and wrong-way driving. Integrated with a high-resolution ANPR camera for license plate decoding in low-light and harsh weather environments.
| Radar Frequency | K-Band (24.1 GHz) or Ka-Band tracking |
|---|---|
| Lanes Monitored | Up to 6 active lanes |
| Camera Resolution | 12 Megapixel high-sensitivity sensor with infrared illuminator |
Vehicle inspection & testing systems Justec Diagnostic

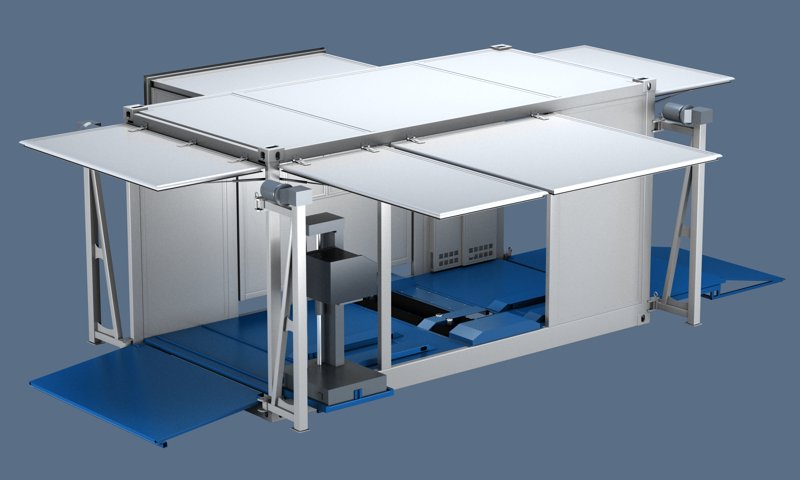

Mobile Vehicle Technical Inspection Station
JustecThis mobile vehicle inspection system is engineered for prompt roadside and remote safety compliance audits of passenger cars, light trucks, and motorcycles. The mechanical portion features an integrated containerized frame structure with a folding electro-hydraulic lift system, allowing rapid deployment of the full inspection lane in under 30 minutes in field operations.
| System Design | Integrated container structure with hydraulic folding/unfolding mechanism |
|---|---|
| Control & Sensor Tech | High-precision strain gauge force sensors, specialized low-noise pre-amplifiers, Hall-effect speed sensors |
| Testing Parameters | Axle load check, wheel braking force test, speedometer calibration, exhaust emissions analysis |
| Key Advantages | Exceptional mobility, one-button quick deployment, robust and weather-resistant industrial design |
Industrial Weighing & Measurement DK weighing
WeighBridge WB-100T Truck Scales
DK weighingHeavy-duty steel-concrete modular truck scales designed for heavy mining, metallurgy, and logistics depots. Operating with hermetically sealed stainless steel load cells (IP68) to survive extreme Central Asian temperature amplitudes (-45°C to +55°C).
| Max Capacity | 100 Tons (scalable to 150 Tons) |
|---|---|
| Platform Size | 18m x 3m (modular, customizable) |
| Load Cell Type | Digital OIML C3 approved compression cells |
Metrological & Calibration Solutions DK Metrology
DK-Calibrator 500 Portable Pressure Calibrator
DK MetrologyDK-Calibrator 500 is a high-precision hand-held pressure calibrator with built-in electrical measurement capabilities and an internal pressure module. Designed for field and laboratory calibration of pressure transmitters, gauges, and switches across industrial automation plants.
| Pressure Range | -0.95 bar to 40 bar (pneumatic) / 0 to 700 bar (hydraulic) |
|---|---|
| Accuracy | ±0.02% FS (Full Scale) including temperature compensation |
| Electrical Measurements | Current (0-24 mA), Voltage (0-30 V), Loop Power (24 V DC) |
| Explosion Proof Rating | ATEX Ex ia IIC T4 Ga certified |
